Anodenblock 5A
Sonnenschein, Berlin Marienfelde
- Country
- Germany
- Manufacturer / Brand
- Sonnenschein, Berlin Marienfelde
- Year
- 1937
- Category
- Power supply/conditioner or battery or charger
- Radiomuseum.org ID
- 244763

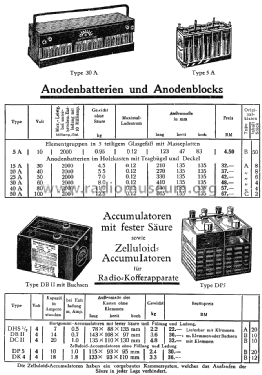

Preisliste 1937
Preisliste 1937
- Wave bands
- - without
- Power type and voltage
- Is a battery or storage battery / 10 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Special material, described in the notes.
- from Radiomuseum.org
- Model: Anodenblock 5A - Sonnenschein, Berlin
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 123 x 83 x 47 mm / 4.8 x 3.3 x 1.9 inch
- Notes
-
Anodenblock zur Herstellung von Anodenbatterien. Bleiaccu-Elementgruppen in 5-teiligem Glasgefäß.
Kapazität: 2 Ah.
- Net weight (2.2 lb = 1 kg)
- 0.950 kg / 2 lb 1.5 oz (2.093 lb)
- Price in first year of sale
- 4.50 RM
- Mentioned in
- - - Manufacturers Literature (Preisliste ca. 1937)
- Author
- Model page created by a member from D. See "Data change" for further contributors.
