- Country
- United States of America (USA)
- Manufacturer / Brand
- Sonora Radio & Telev. Corp.; Chicago (IL)
- Year
- 1949 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 236781
-
- alternative name: Sonora Electric Phono
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 110-120 / 4.5 & 67,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: 102 - Sonora Radio & Telev. Corp.;
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
Three Power Operated Portable Superheterodyne Receiver with Loop Antenna.
AM: 535-1620kc.
- Mentioned in

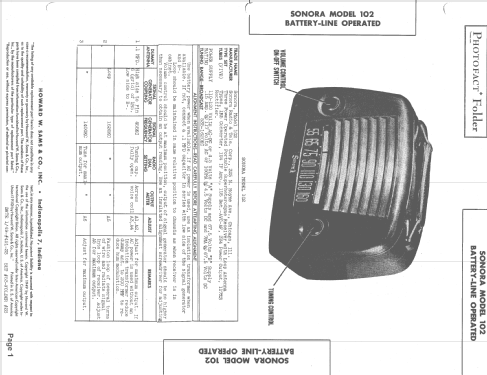

- Photofact Folder, Howard W. SAMS (491-23, Set 53, Folder 23)
- Literature/Schematics (1)
- Machine Age to Jet Age II (page 278.)
- Author
- Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
