- Country
- United States of America (USA)
- Manufacturer / Brand
- Sonora Radio & Telev. Corp.; Chicago (IL)
- Year
- 1952 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 356570
-
- alternative name: Sonora Electric Phono

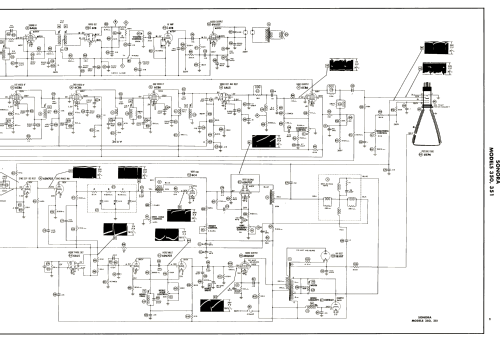

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- 6BK7 or 6BQ7 6J6 6CB6 6CB6 6CB6 6AL5 6CB6 6SN7GT 6AU6 6T8 6V6GT 6C4 6SN7GTA 6AL5 6SN7GT 6BQ6G 6W4GT 1B3GT 5U4G 21EP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 351 - Sonora Radio & Telev. Corp.;
- Shape
- Console with any shape - in general
- Notes
-
Sonora model 351 is a 21” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with a VHF tuner and picture tube 21EP4.
- Literature/Schematics (1)

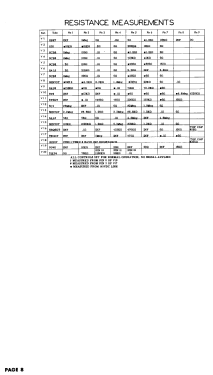

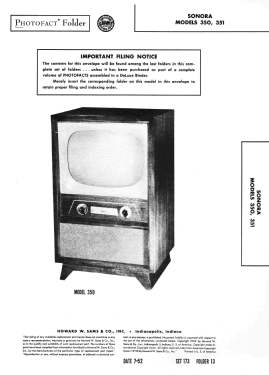

- Photofact Folder, Howard W. SAMS (Set 173, folder 13, dated 7-52)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
