- Country
- United States of America (USA)
- Manufacturer / Brand
- Sonora Radio & Telev. Corp.; Chicago (IL)
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 245432
-
- alternative name: Sonora Electric Phono

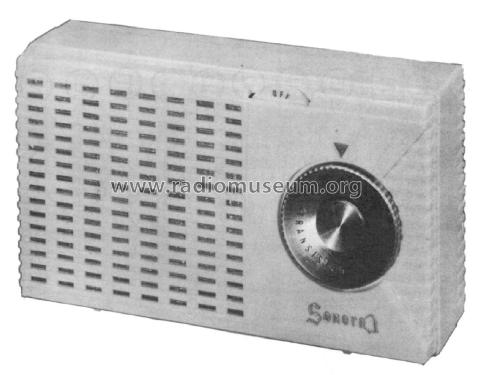

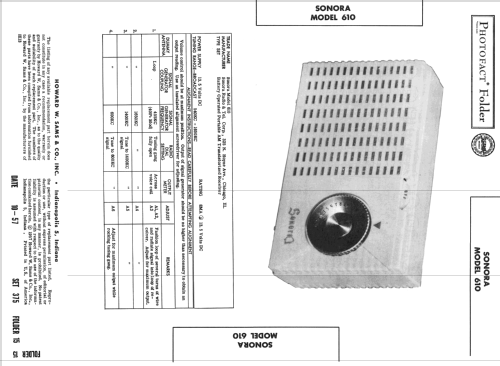

Picture from service manual.

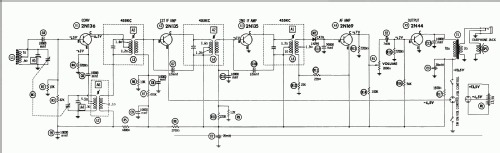

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 13.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 inch = 17.8 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 610 - Sonora Radio & Telev. Corp.;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 140 x 80 x 40 mm / 5.5 x 3.1 x 1.6 inch
- Notes
-
Sonora model 610 is a battery operated portable AM transistorized receiver.
Successor of the General Electric 675 series with improved circuity.
socketed transistors, diode detector with following af stage.
Battery: Eveready #239, 13.5 Volt, tap at 9 Volt.
- Literature/Schematics (1)
- Photofact TSM Transistor Radio Series SAMS
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 375 Folder 15 dated 10-57)
- Author
- Model page created by Wolfgang Gebert. See "Data change" for further contributors.
- Other Models
-
Here you find 344 models, 207 with images and 259 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Sonora Radio & Telev. Corp.; Chicago (IL)
