- Country
- United States of America (USA)
- Manufacturer / Brand
- Sonora Radio & Telev. Corp.; Chicago (IL)
- Year
- 1957 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 315330
-
- alternative name: Sonora Electric Phono
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 665 - Sonora Radio & Telev. Corp.;
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Sonora model 665 is a 10" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis VHF tuner R-2675 and picture tube 10ADP4.
- Literature/Schematics (1)

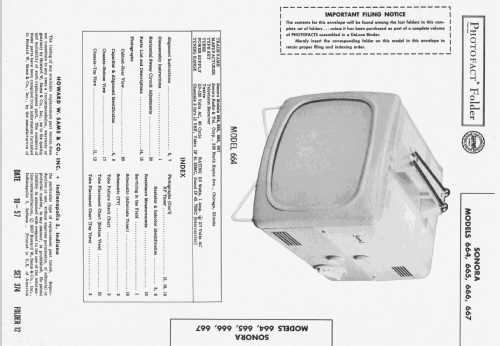

- Photofact Folder, Howard W. SAMS (Set 374 Folder 12 dated 10-57)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
