- Country
- United States of America (USA)
- Manufacturer / Brand
- Sonora Radio & Telev. Corp.; Chicago (IL)
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 58310
-
- alternative name: Sonora Electric Phono
Scanned from the Sonora Folder for 1939.
Scanned from the Sonora Folder for 1939.

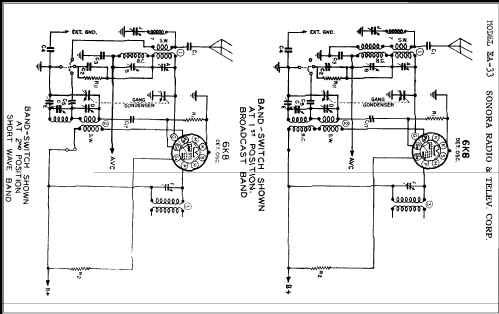

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: EA-33 - Sonora Radio & Telev. Corp.;
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 17.5 x 10.25 x 8 inch / 445 x 260 x 203 mm
- Notes
-
Ballast tube: K49C or 165R8G. Range: 1720-535 kc and 5650-18,100 kc.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 19 = 1949 and before
- Literature/Schematics (3)
- -- Original prospect or advert (The Sonora Folder for 1939.)
