- Country
- United States of America (USA)
- Manufacturer / Brand
- Sonora Radio & Telev. Corp.; Chicago (IL)
- Year
- 1940/1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 200923
-
- alternative name: Sonora Electric Phono
- Number of Tubes
- 6
- Valves / Tubes
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: KXF-95 - Sonora Radio & Telev. Corp.;
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 32 x 36 x 15 inch / 813 x 914 x 381 mm
- Source of data
- Pre-War Consoles
- Mentioned in

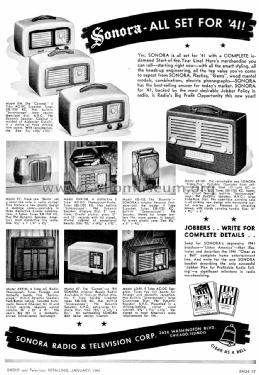

- Radio Retailing (Radio & Television R.) (January 1941.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
