- Country
- United States of America (USA)
- Manufacturer / Brand
- Sonora Radio & Telev. Corp.; Chicago (IL)
- Year
- 1940 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 58252
-
- alternative name: Sonora Electric Phono

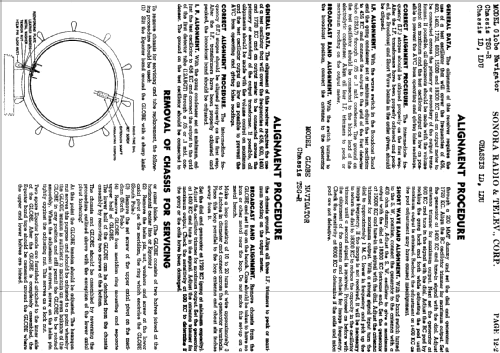

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: Ch= LDU - Sonora Radio & Telev. Corp.;
- Shape
- Chassis only or for «building in»
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 12 = ca. 1941 and before
- Other Models
-
Here you find 345 models, 207 with images and 259 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Sonora Radio & Telev. Corp.; Chicago (IL)
