• Country
• United States of America (USA)

• Manufacturer / Brand
• Sonora Radio & Telev. Corp.; Chicago (IL)

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 313753

• • alternative name: Sonora Electric Phono

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 - 120 Volt

• Loudspeaker
• Ø 4 inch = 10.2 cm

• Material
• Bakelite case

• from Radiomuseum.org

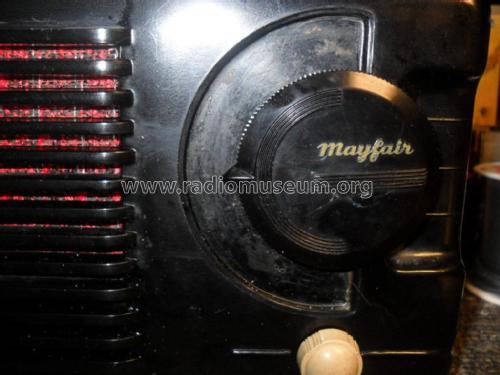

• Model: Mayfair 355 Ch= XZU - Sonora Radio & Telev. Corp.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 7.5 x 4.5 x 4.5 inch / 191 x 114 x 114 mm

• Notes

• Model No. 355 Black

  Model No. 393 White

• Net weight (2.2 lb = 1 kg)
• 1.5 lb (1 lb 8 oz) / 0.681 kg

• Literature/Schematics (1)
• Rider's Perpetual, Volume 23 (last) = covering up to 1954 (may be similar to Mitchell 1258 on page 23-6)

• Author
• Model page created by David Hamm. See "Data change" for further contributors.
