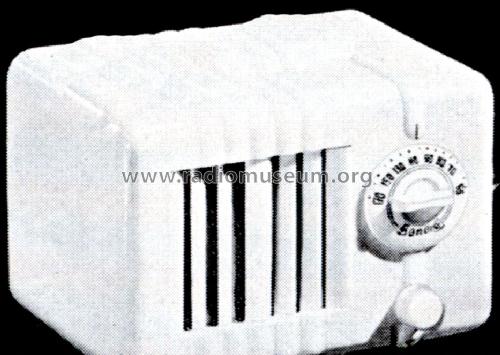

P-106

Sonora Radio & Telev. Corp.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1938/1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 252683
    • alternative name: Sonora Electric Phono

 Technical Specifications

  • Number of Tubes
  • 4
  • Valves / Tubes
  • Main principle
  • Superheterodyne (common)
  • Power type and voltage
  • AC/DC-set / 110-120 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: P-106 - Sonora Radio & Telev. Corp.;
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 6.5 x 4.5 x 4.625 inch / 165 x 114 x 117 mm
  • Notes

  • Tunes 1720 to 550 kc. In Ivory finish.

  • Net weight (2.2 lb = 1 kg)
  • 4.25 lb (4 lb 4 oz) / 1.930 kg
  • Literature/Schematics (3)
  • -- Original prospect or advert (The Sonora Folder for 1939.)
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
