- Country
- United States of America (USA)
- Manufacturer / Brand
- Sonora Radio & Telev. Corp.; Chicago (IL)
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 74002
-
- alternative name: Sonora Electric Phono
Beitman
SAMS Photofact
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Ø 4 inch = 10.2 cm
- from Radiomuseum.org

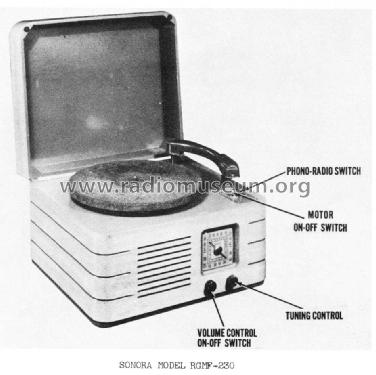

- Model: RGMF-230 - Sonora Radio & Telev. Corp.;

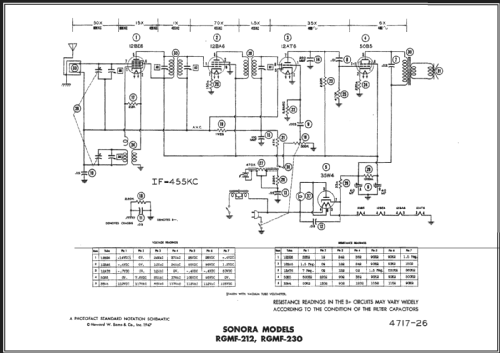

- Circuit diagram reference
- Rider's Perpetual, Volume 16 = ca. 1948 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)

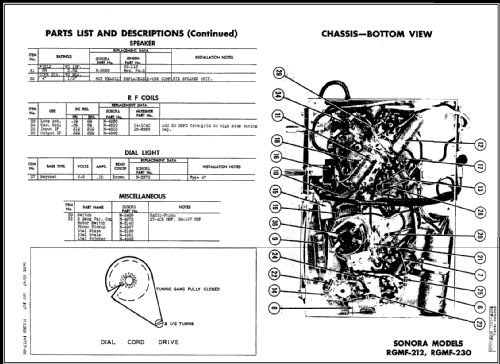

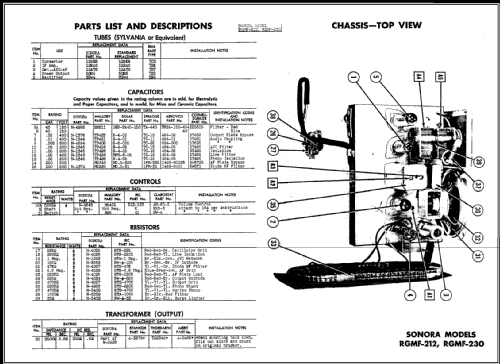

- Photofact Folder, Howard W. SAMS (Set 27, Date 10/47, Folder 4717-26)
- Author
- Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
