• Country
• United States of America (USA)

• Manufacturer / Brand
• Sonora Radio & Telev. Corp.; Chicago (IL)

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 58371

• • alternative name: Sonora Electric Phono

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12A8GT 12K7GT 12Q7GT 35L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org

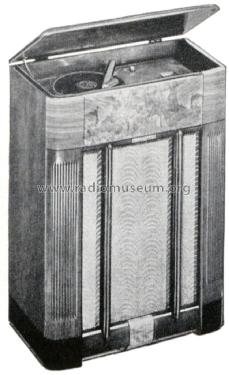

• Model: TNF-68 Ch= TNF - Sonora Radio & Telev. Corp.;

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 27 x 36 x 15 inch / 686 x 914 x 381 mm

• Notes

• Built-in loop antenna. Tunes 535 to 1720 kc.

• External source of data
• Ernst Erb

• Source of data
• Pre-War Consoles

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Literature/Schematics (3)

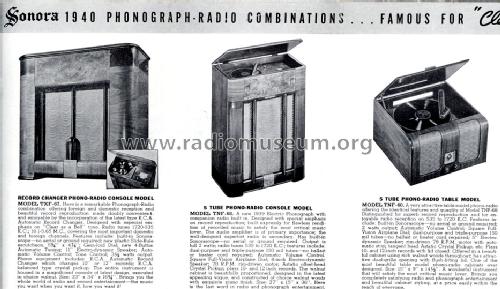

• -- Original prospect or advert (The Sonora Folder for 1940.)
