• Country
• United States of America (USA)

• Manufacturer / Brand
• Sonora Radio & Telev. Corp.; Chicago (IL)

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 58373

• • alternative name: Sonora Electric Phono

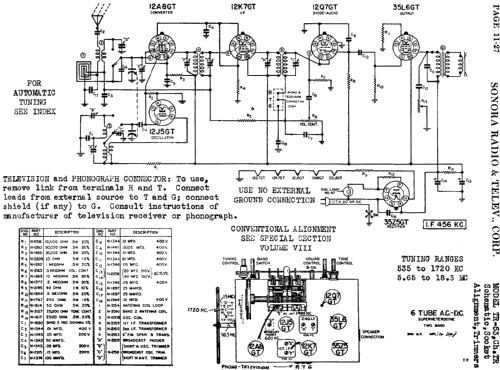

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12A8GT 12J5GT 12K7GT 12Q7GT 35L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: TR-53 Ch= TR - Sonora Radio & Telev. Corp.;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 18.125 x 10.25 x 8.75 inch / 460 x 260 x 222 mm

• Notes

• Built-in loop antenna; push-button tuner; phono or television input.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Literature/Schematics (3)
• -- Original prospect or advert (The Sonora Folder for 1940.)
