• Country
• United States of America (USA)

• Manufacturer / Brand
• Sonora Radio & Telev. Corp.; Chicago (IL)

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 58374

• • alternative name: Sonora Electric Phono

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12A8GT 12K7GT 12Q7GT 35L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Bakelite case

• from Radiomuseum.org

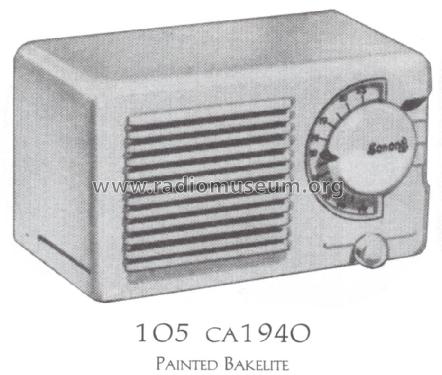

• Model: TSA-105 Cosmo Ch= TSA - Sonora Radio & Telev. Corp.;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 8 x 4.75 x 4.75 inch / 203 x 121 x 121 mm

• Notes

• Built-in loop antenna. Brown bakelite or Ivory finish. Tunes 1720 to 535 kc.

• Price in first year of sale
• 8.07 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Table Top Radios Vol. 1 Stein 98 (page 148.)

• Literature/Schematics (2)
• Machine Age to Jet Age II (page 278.)

• Literature/Schematics (3)
• -- Original prospect or advert (The Sonora Folder for 1939 and 1940.)

• Literature/Schematics (4)
• Radio Retailing (Radio & Television R.) (May 1939 page 34)

• Other Models

• Here you find 338 models, 206 with images and 253 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sonora Radio & Telev. Corp.; Chicago (IL)
