- Country
- United States of America (USA)
- Manufacturer / Brand
- Sonora Radio & Telev. Corp.; Chicago (IL)
- Year
- 1939/1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 204683
-
- alternative name: Sonora Electric Phono

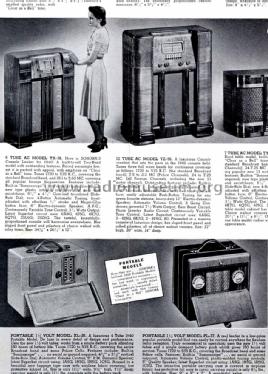

Scanned from the Sonora Folder for 1940.
Scanned from the Sonora Folder for 1940.
Cat.Burstein-Applebee Co.1940
Cat.Burstein-Applebee Co.1940
- Number of Tubes
- 12
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: TZ-56 - Sonora Radio & Telev. Corp.;
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 30 x 37 x 14 inch / 762 x 940 x 356 mm
- Notes
-
Bands:
- BC (1720 - 535 Kc)
- Police, Amateur (1710 - 5650 Kc)
- SW (5.65 - 18.3 Mc)Push-Pull output stage
- Source of data
- Pre-War Consoles
- Mentioned in
- Summer 1940.Supplement 56A To General Catalog 56 from Burstein-Applebee Co.
- Literature/Schematics (3)
- -- Original prospect or advert (The Sonora Folder for 1940.)
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
