• Country
• United States of America (USA)

• Manufacturer / Brand
• Sonora Radio & Telev. Corp.; Chicago (IL)

• Year
• 1939/1940

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 58387

• • alternative name: Sonora Electric Phono

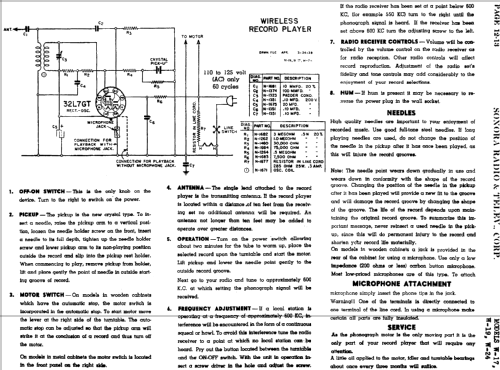

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 32L7GT

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-125 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Wooden case

• from Radiomuseum.org
• Model: W-24 Magic Wireless - Sonora Radio & Telev. Corp.;

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 13.25 x 7 x 10.5 inch / 337 x 178 x 267 mm

• Notes

• Wireless record player.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 12 = ca. 1941 and before

• Literature/Schematics (3)
• -- Original prospect or advert (The Sonora Folder for 1940.)
