• Country
• United States of America (USA)

• Manufacturer / Brand
• Sonora Radio & Telev. Corp.; Chicago (IL)

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75668

• • alternative name: Sonora Electric Phono

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 35L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• from Radiomuseum.org

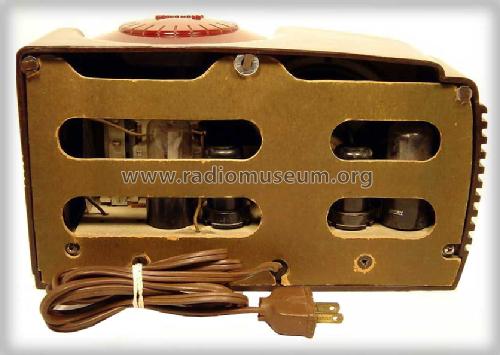

• Model: WA-244 - Sonora Radio & Telev. Corp.;

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 08, 1948

• Author
• Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
