Solid State 9 Transistor 2F-23W

Sony Corporation; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Sony Corporation; Tokyo

Year
1970 ??

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
128483

Schematics

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 754421) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (3)

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 754422) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (3)

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 754423) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (3)

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 754424) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (3)

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 2771494) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (1)

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 2771496) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (1)

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 2771492) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (1)

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 2771497) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (1)

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 2771493) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (1)

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 2771495) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (1)

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 1441630) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (2)
By courtesy of EBAY User: eahme

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 1441631) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (2)
By courtesy of EBAY User: eahme

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 1441632) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (2)
By courtesy of EBAY User: eahme

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 1441633) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (2)
By courtesy of EBAY User: eahme

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 1441634) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (2)
By courtesy of EBAY User: eahme

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 689672) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (1)

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 689673) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (1)

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 689674) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (1)

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 1221655) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (2)
Ebay Seller nickcal2002 Item 160785757423

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 1221656) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (2)
Ebay Seller nickcal2002 Item 160785757423

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 1221657) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (2)
Ebay Seller nickcal2002 Item 160785757423

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 1221658) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (2)
Ebay Seller nickcal2002 Item 160785757423

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 2900010) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (2)
eBay item number:304934996051

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 2900011) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (2)
eBay item number:304934996051

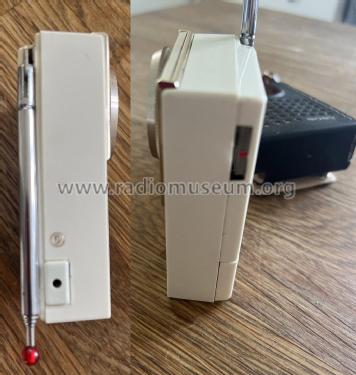

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 2900012) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (2)
eBay item number:304934996051

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 2900013) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (2)
eBay item number:304934996051

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 2900014) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (2)
eBay item number:304934996051

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 2900015) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (2)
eBay item number:304934996051

Solid State 9 Transistor 2F-23W; Sony Corporation; (ID = 2900016) Radio — Sony Corporation; Solid State 9 Transistor 2F-23W (2)
eBay item number:304934996051

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
9

Semiconductors
2SA455 2SA455 2SC403 2SC403 2SC403 2SC402 2SC401 2SD64 2SD64 1T23 1T26 1T26

Main principle
Superheterodyne (common); ZF/IF 455/10700 kHz

Tuned circuits
4 AM circuit(s) 6 FM circuit(s)

Wave bands
Broadcast (BC) and FM or UHF.

Power type and voltage
Dry Batteries / RM-640: 3 x 1.3 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Solid State 9 Transistor 2F-23W - Sony Corporation; Tokyo

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
2.75 x 3.5 x 0 inch / 70 x 89 x 0 mm

Notes
alternatively supplied by Sony in clamshell box later at lower price with half-size leather case. Weight with clamshell 300 Gramm

Powering by 3 Mercury button cells RM-640 (Mallory) or E-640 (Eveready)

The schematic states erroneously transistor types 2SA403, 2SA402 and 2SA401 instead of the correct 2SC... types.

Net weight (2.2 lb = 1 kg)
0.230 kg / 0 lb 8.1 oz (0.507 lb)

Literature/Schematics (1)
-- Schematic

Author
Model page created by a member from A. See "Data change" for further contributors.
