2R-26

Sony Corporation; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Sony Corporation; Tokyo

Year
1966 ??

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
100219

Schematics

2R-26; Sony Corporation; (ID = 1683920) Radio — Sony Corporation; 2R-26 (3)

2R-26; Sony Corporation; (ID = 3015495) Radio — Sony Corporation; 2R-26 (1)

2R-26; Sony Corporation; (ID = 3015496) Radio — Sony Corporation; 2R-26 (1)

2R-26; Sony Corporation; (ID = 3015494) Radio — Sony Corporation; 2R-26 (1)

2R-26; Sony Corporation; (ID = 3015493) Radio — Sony Corporation; 2R-26 (1)

2R-26; Sony Corporation; (ID = 3015497) Radio — Sony Corporation; 2R-26 (2)

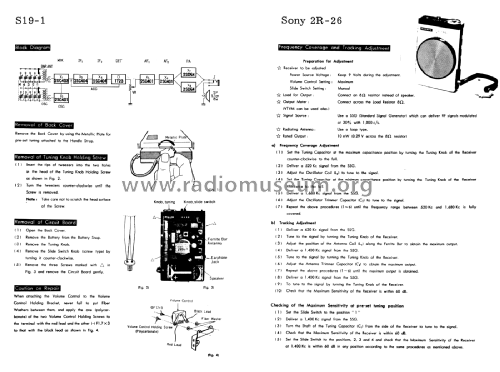

service manual

2R-26; Sony Corporation; (ID = 2700112) Radio — Sony Corporation; 2R-26 (1)

2R-26; Sony Corporation; (ID = 2700113) Radio — Sony Corporation; 2R-26 (1)

2R-26; Sony Corporation; (ID = 2700110) Radio — Sony Corporation; 2R-26 (1)

2R-26; Sony Corporation; (ID = 2700111) Radio — Sony Corporation; 2R-26 (1)

2R-26; Sony Corporation; (ID = 2700114) Radio — Sony Corporation; 2R-26 (1)

2R-26; Sony Corporation; (ID = 231825) Radio — Sony Corporation; 2R-26 (1)

2R-26; Sony Corporation; (ID = 452836) Radio — Sony Corporation; 2R-26 (1)

2R-26; Sony Corporation; (ID = 689686) Radio — Sony Corporation; 2R-26 (1)

2R-26; Sony Corporation; (ID = 689687) Radio — Sony Corporation; 2R-26 (1)

2R-26; Sony Corporation; (ID = 689688) Radio — Sony Corporation; 2R-26 (1)

2R-26; Sony Corporation; (ID = 915730) Radio — Sony Corporation; 2R-26 (1)

2R-26; Sony Corporation; (ID = 1578114) Radio — Sony Corporation; 2R-26 (2)
Picture Courtesy Of EBAY User: akachuck

2R-26; Sony Corporation; (ID = 1578115) Radio — Sony Corporation; 2R-26 (2)
Picture Courtesy Of EBAY User: akachuck

2R-26; Sony Corporation; (ID = 1578116) Radio — Sony Corporation; 2R-26 (2)
Picture Courtesy Of EBAY User: akachuck

2R-26; Sony Corporation; (ID = 2977618) Radio — Sony Corporation; 2R-26 (2)
eBay item number:155903945733

2R-26; Sony Corporation; (ID = 2977620) Radio — Sony Corporation; 2R-26 (2)
eBay item number:155903945733

2R-26; Sony Corporation; (ID = 2977621) Radio — Sony Corporation; 2R-26 (2)
eBay item number:155903945733

2R-26; Sony Corporation; (ID = 2977623) Radio — Sony Corporation; 2R-26 (2)
eBay item number:155903945733

2R-26; Sony Corporation; (ID = 2977624) Radio — Sony Corporation; 2R-26 (2)
eBay item number:155903945733

2R-26; Sony Corporation; (ID = 2977626) Radio — Sony Corporation; 2R-26 (2)
eBay item number:155903945733

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
8

Semiconductors
2SC403 2SC401 2SC404 2SC404 1T23 2SC401 2SC401 2SD64 2SD64

Main principle
Superheterodyne (common); ZF/IF 455 kHz

Tuned circuits
5 AM circuit(s)

Wave bands
Broadcast only (MW).

Power type and voltage
Dry Batteries / 9 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Power out
0.15 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: 2R-26 - Sony Corporation; Tokyo

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
65 x 105 x 29 mm / 2.6 x 4.1 x 1.1 inch

Notes
Taschenradio mit Stationsschalter. Mit dem "Schlüssel" an der Trageschlaufe werden die gewünschten Sender seitlich mit Trimmern vorgewählt, mit dem Schiebeschalter oben kann man sie dann abrufen, bzw. auf manuelle Senderwahl unschalten.

Net weight (2.2 lb = 1 kg)
0.178 kg / 0 lb 6.3 oz (0.392 lb)

Literature/Schematics (1)
-- Schematic

Author
Model page created by Olaf Siemon. See "Data change" for further contributors.
