• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1991

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 153895

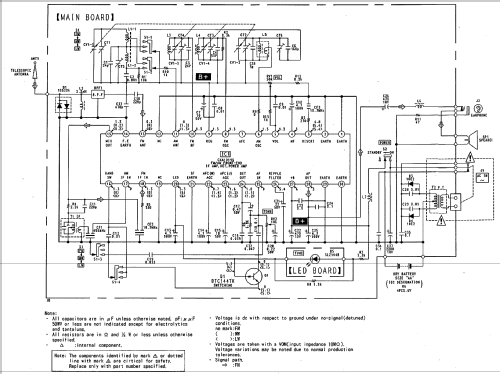

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors
• CXA1019S

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 (AEP model); 240 (UK model) / 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

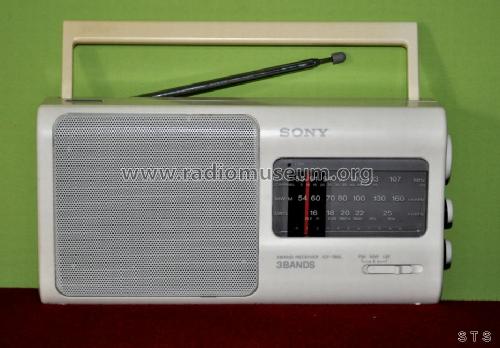

• Model: 3 Band Receiver ICF-780L - Sony Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 255 x 129 x 62.6 mm / 10 x 5.1 x 2.5 inch

• Notes
• Power requirements:
  With the supplied AC power cord: 220VAC, 50Hz (AEP model); 240VAC, 50Hz (UK model).
  With four R6 (size AA) batteries: 6V DC
  Batterie life: Approx. 35 hours using Sony batteries SUM-3 (NS)

• Net weight (2.2 lb = 1 kg)
• 0.965 kg / 2 lb 2 oz (2.126 lb)

• Mentioned in
• - - Manufacturers Literature (Service-Manual)

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
