3 Band Recevier ICF-750S
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1989
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 289965

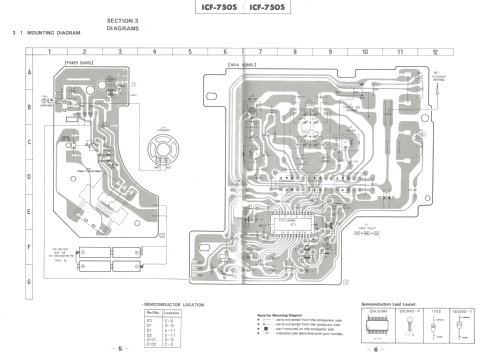

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 220 / 4×1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8.5 cm = 3.3 inch
- Power out
- 0.5 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 3 Band Recevier ICF-750S - Sony Corporation; Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 253 x 122 x 57 mm / 10 x 4.8 x 2.2 inch
- Net weight (2.2 lb = 1 kg)
- 0.760 kg / 1 lb 10.8 oz (1.674 lb)
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
