• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 127786

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SA454 2SA455 2SA122 2SA122 2SA122 2SD65 2SD65 2SD65 1T26 1T23

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 6 × 1,5 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

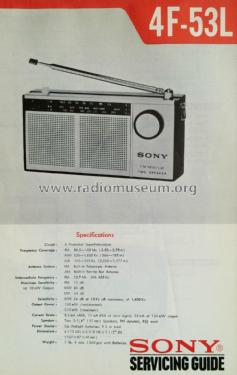

• Model: 4 F-53 L - Sony Corporation; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 167 x 87 x 40 mm / 6.6 x 3.4 x 1.6 inch

• Notes

• Lederetui.

  Leather case.

  Custodia in pelle.

• Net weight (2.2 lb = 1 kg)
• 0.6 kg / 1 lb 5.1 oz (1.322 lb)

• Source of data
• Handbuch VDRG 1968/1969

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
