• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1968 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 115944

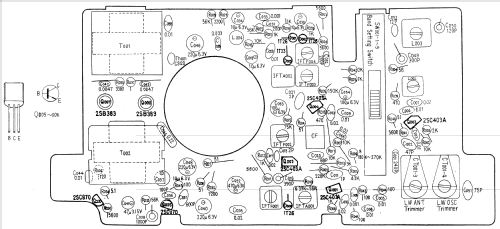

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• 2SC629 2SC629 2SC403 2SC403 2SC403 2SC403 2SC870 2SC870 2SB383 2SB383 1T26 1T23

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / D: 3 x 1.5 / 4.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 6F-21L - Sony Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 230 x 165 x 54 mm / 9.1 x 6.5 x 2.1 inch

• Notes

• Sony Portable 3Band Radio Model 6F-21L.
  Tuning Range: FM 87.5 - 108 MHz, AM 530 - 1605 kHz, LW 150 - 285 kHz.
  MPX Out, AUX In, Earphone.
  Carrying Handle, Telescopic antenna.



• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Ervé Leclercq. See "Data change" for further contributors.
