• Country
• Spain

• Manufacturer / Brand
• Sony España; Hispano Sony; Kosmos Eléctrica; Las Franquesas del Vallés

• Year
• 1968 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 110553

• • alternative name: Hispano Sony S.A.

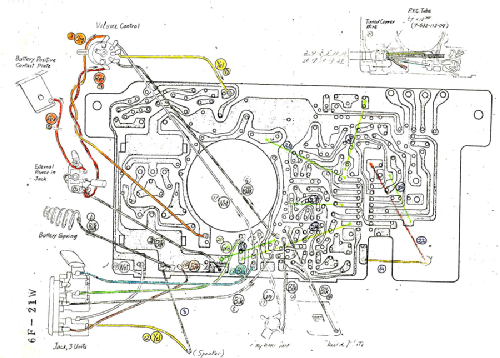

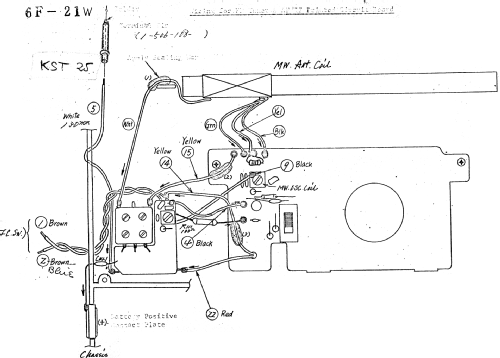

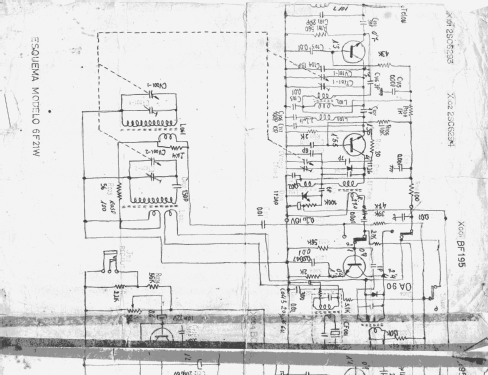

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• 2SC629 2SC629 2SC403 2SC403 2SC403 2SC633 2SC633 2SB383 2SB383 1T23 1T26 1T26

• Main principle
• Superheterodyne (common); ZF/IF 455 / 10700 kHz

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / D: 3 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.2 cm = 3.6 inch

• Power out
• 0.8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: FM/AM 9-Transistor 6F-21W - Sony España; Hispano Sony;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 218 x 133 x 54 mm / 8.6 x 5.2 x 2.1 inch

• Notes

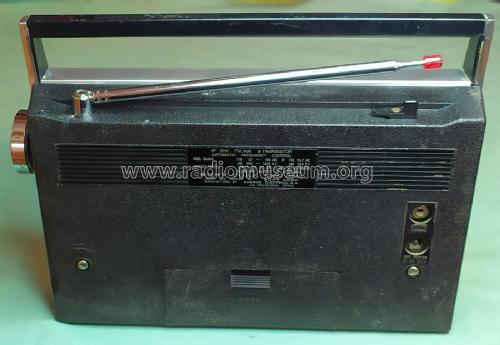

• Sony España 6F-21W

  FM/AM 9-Transistor; AFC.

  AM-FI con resonador piezoeléctrico formando parte del primer transformador de FI.

  Salida MPX para conexión de un adaptador de estéreo (múltiplex) externo.

  Fabricado con licencia de Sony Corporation por Kosmos Eléctrica, S.A., Las Franquesas, España.

  ---

  Sony 6F-21W FM/AM 9-Transistor; AFC.
  AM-IF with an additional piezo resonator which is part of the first IF transformer.

  MPX output for connecting an external multiplex (stereo) adapter.

  Under the licence of Sony Corporation manufactured by Kosmos Electrica S.A. Las Franquesas, Spain.

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Source of data
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Jordi Cardona Serra. See "Data change" for further contributors.

• Other Models

• Here you find 163 models, 151 with images and 12 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sony España; Hispano Sony; Kosmos Eléctrica; Las Franquesas del Vallés
