• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1970 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 91553

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 230DB4

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Batteries (any type) / 240 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Various materials

• from Radiomuseum.org
• Model: TV 9-90UB - Sony Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

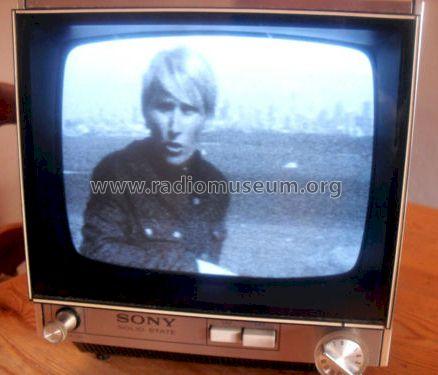

• Solid State Portable B/W TV with 23 cm Picture Tube, VHF Tuner for 405 Lines; UHF Tuner for 625 Lines. Made for British market.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
