Captain 77 ICF-5800L

• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 94311

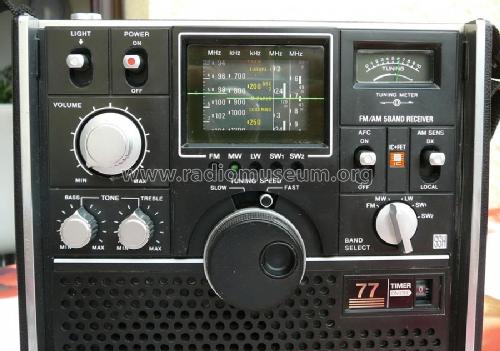

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

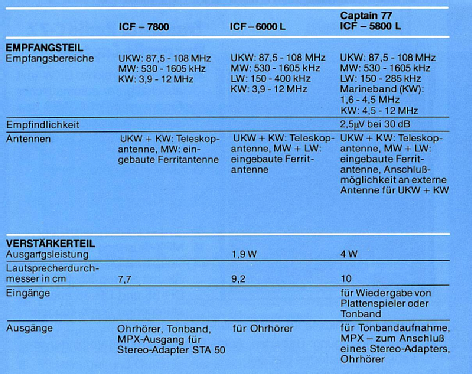

• Number of Transistors
• 14

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / C: 4 x 1,5 / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Captain 77 ICF-5800L - Sony Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 208 x 228 x 84 mm / 8.2 x 9 x 3.3 inch

• Notes

• Tuning speed slow/fast, sw1 1,6-4,5 MHz, sw2 4,5-12 MHz.

  Optional Accessories:
  Car Battery Cord: DCC-127H
  Power Pack: AC-456C for the European countries
  AC Adaptor & Charger: AC-15 for the United Kingdom
  AC Adaptor & Charger: AC-4W for other countries
  Stereo Headphone Adaptor: STA-50

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Source of data
• - - Data from my own collection

• Documents regarding this model

• Author
• Model page created by Salvador Galan-Ocaña. See "Data change" for further contributors.
