• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1969 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 348792

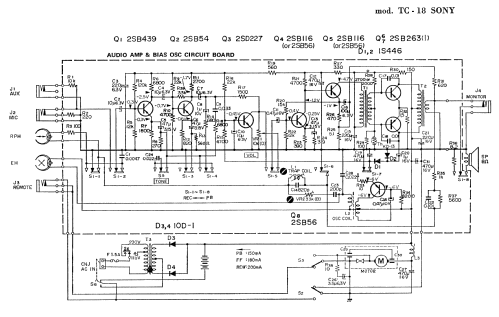

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SB439 2SB54 2SD227 2SB116 or. 2SB56 2SB116 or. 2SB56 2SB263 2SB263 2SB56 1S446 1S446 10D-1 10D-1

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 60Hz, 117 or 50-60Hz, 115; 230 / C: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Cassette-Corder - Tapecorder TC-18 - Sony Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• Aux input. Input for Microphone with remote control.

• Mentioned in
• -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" Italy, marzo 1971.)

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
