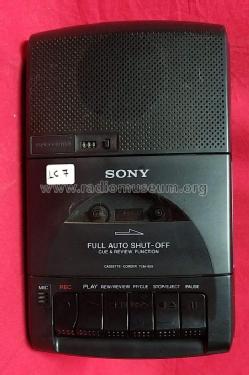

Cassette-Corder TCM-939
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1995
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 198645
Original box.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- LA4160
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Batteries / addl. power jack / AA: 4 x 1,5 / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.6 cm = 2.6 inch
- Power out
- 0.4 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Cassette-Corder TCM-939 - Sony Corporation; Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 144 x 60 x 237 mm / 5.7 x 2.4 x 9.3 inch
- Notes
-
Frequency range: 150 - 8.000 Hz. Full auto shut-off. Tape counter 3 digit. Internal microphone. Originally equipped with Sony power supply 220/230 V AC.
Assembled in China
- Net weight (2.2 lb = 1 kg)
- 0.675 kg / 1 lb 7.8 oz (1.487 lb)
- Author
- Model page created by Jörg Holtzapfel. See "Data change" for further contributors.
