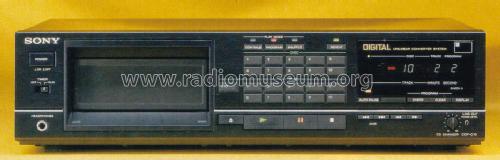

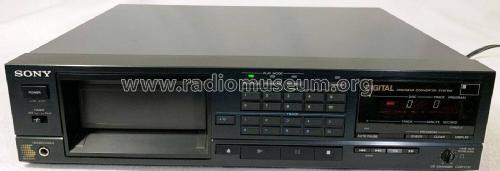

CD-Changer CDP-C10

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1987
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 224834

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: CD-Changer CDP-C10 - Sony Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 115 x 340 mm / 16.9 x 4.5 x 13.4 inch
  • Notes

  • A stereo hi-fi 10 disc compact disc changer with remote control (RM-D110). Front loading magazine. Direct access by 10 Disc Keys & 10 Track Keys, 4-way Shuffle Play, Timer Play, Auto Pause, RMS between 10 Discs, Disc magazine compatible with CDX-J10 (Disc Jockey Car CD Changer). RCA phono sockets for Fixed and Variable Line Out, Subcode Output connection, jack for headphones.

    Specification
    System Compact disc digital audio system
    Frequency response 2 Hz - 20,000 Hz (+0.5dB,-1.5dB)
    Signal to noise ratio More than 98 dB
    Dynamic range More than 95 dB
    Harmonic distortion Less than 0.003% (at 1 kHz)
    Channel separation More than 90 dB
    Wow and flutter Below measurable limit
    Fixed line output
    (phono jacks)    		 Output level 2 Vrms (at MSB)
    Load impedance over 10 kΩ
    Variable line outputs
    (phono jacks)    		 Output level 0 Vrms - 2 V rms (at MSB)
    Load impedance over 50 kΩ
    Headphones
    (phone jack)    		 28 mW at 32 Ω

    Versions/Power requirements
    US Model  /  120V AC 60Hz
    Canadian Model  /  120V AC 60Hz
    AEP Model  /  220 V AC, 50 Hz
    UK Model  /  240 V AC, 50 Hz
    E Model  /  120, 220 or 240 V AC 50/60 Hz adjustable

    Power consumption      17W

    Sony CD-Changer CDP-C10,
    Digital Unlinear Converter System, 10-CD-Wechsler,
    Wechslermagazin für 10 CD's, kompatibel mit Sony Car-CD-Wechslern.

  • Net weight (2.2 lb = 1 kg)
  • 7.5 kg / 16 lb 8.3 oz (16.52 lb)
  • Source of data
  • -- Original prospect or advert
  • Mentioned in
  • -- Original prospect or advert (1987 Spectacular Sony catalogue)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manual CDP-C10 dated 1987)
