Compact Disc Player CDP-30

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1985 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 175554

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 120; 220; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player CDP-30 - Sony Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 355 x 70 x 275 mm / 14 x 2.8 x 10.8 inch
  • Notes

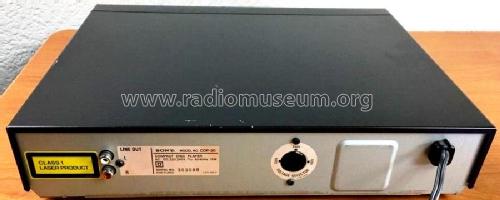

  • A midi size stereo hi-fi second generation Sony compact disc player. RCA phono sockets for Line Output.

    Specification
    System Compact disc digital audio system
    Disc Compact Disc
      Track pitch
      Sampling frequency
      Quantization
      Modulation system
      Transfer rate    		 1.6 µm
    44.1 kHz
    16 bit linear quantizing/channel
    EFM
    2.03 Mbit/sec. (before modulation)

    Laser diode properties (KSS-121A) Material : GaAIAs
    Wavelength : 780 nm
    Emission duration : Continuous
    Laser output : Max. 0.6 mW
    Spindle speed 500 r.p.m. to 200 r.p.m. (CLV)
    Scan velocity 1.2 - 1.4 m/sec.
    Error correction Sony Super Strategy Cross Interleave Read Solomon Code
    Number of channels 2
    D-A conversion 16-bit linear
    Frequency response 20 - 20,000 Hz ±0.5dB
    Harmonic distortion Less than 0.004% (1 kHz)
    Dynamic range More than 90 dB
    Channel separation More than 90 dB
    Wow and flutter Below measurable limit
    Outputs
    Line outputs Output level 2V rms (at MSB)
    Load impedance over 10 kΩ

    Versions/Power requirements
    US model /  120V AC 60Hz
    AEP model /  220V AC 50/60Hz
    UK model /  240V AC 50/60Hz
    E model /  110, 120, 220 or 240V AC 50/60Hz adjustable

    Power consumption:   15 W

  • Net weight (2.2 lb = 1 kg)
  • 3.8 kg / 8 lb 5.9 oz (8.37 lb)
  • Source of data
  • -- Original prospect or advert
  • Mentioned in
  • -- Original prospect or advert (Sony '86 Hi-Fi catalogue)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manual CDP-30 dated 1985)
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Operating Instructions CDP-30 dated 1985)
  • Author
  • Model page created by Jaroslav Hlavaty. See "Data change" for further contributors.
