Compact Disc Player CDP-515

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1994
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 104879

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 220-230 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player CDP-515 - Sony Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 110 x 295 mm / 16.9 x 4.3 x 11.6 inch
  • Notes

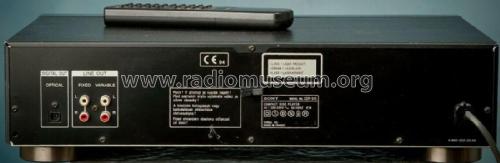

  • A stereo hi-fi compact disc player with remote control (RM-D720). Advanced Pulse D/A Converter, Score Digital Filter. RCA phono Fixed and Variable Line Out sockets, Optical output connector for Digital output, jack for headphones with volume control.

    Specification
    Frequency response 2 Hz - 20 kHz ± 0.5 dB
    Signal to noise ratio More than 107dB
    Dynamic range More than 99 dB
    Harmonic distortion Less than 0.0027%
    Channel separation More than 103 dB
    Outputs
    Line Out (Fixed)
    (phono jacks)    		 Output level 2V (at 50 kΩ)
    Load impedance over 10 kΩ
    Line Out (Variable)
    (phono jacks)    		 Output level max. 2V (at 50 kΩ)
    Load impedance over 50 kΩ
    Digital Out (Optical)
    (optical output connector)    		 Wave length 660 nm
    Output level -18 dBm
    Headphones
    (Stereo phone jack)    		 Output level max. 10 mW
    Load impedance 32 Ω

    Versions/Power requirements
    AEP model /  220-230V AC 50/60Hz

    Power consumption:   12 W

    Made in France

  • Net weight (2.2 lb = 1 kg)
  • 3.8 kg / 8 lb 5.9 oz (8.37 lb)
  • Mentioned in
  • -- Original prospect or advert (Sony '94 General catalogue)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service manual CDP-515 dated 1994.3)
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
