• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1991

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 286519

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• CD-Player, -Writer, MD, MOD (audio)

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

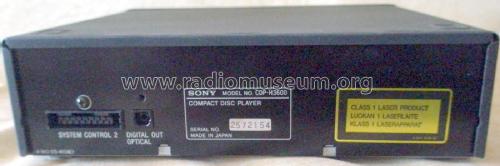

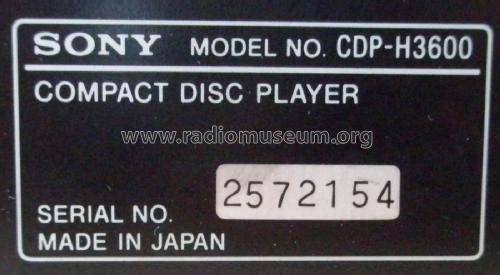

• Model: CDP-H3600 - Sony Corporation; Tokyo

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 225 x 60 x 275 mm / 8.9 x 2.4 x 10.8 inch

• Notes

• Compact Disc player unit for MHC-x600 Systems.

• Author
• Model page created by Carlos Saavedra. See "Data change" for further contributors.
