Compact Disc Player CDP-S7

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1991 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 135341

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 220-230; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Compact Disc Player CDP-S7 - Sony Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 95 x 355 mm / 16.9 x 3.7 x 14 inch
  • Notes

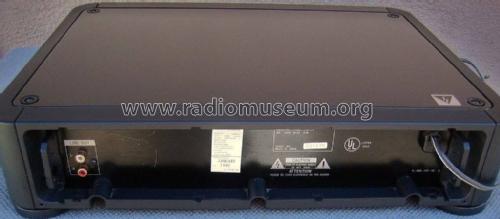

  • A stereo hi-fi compact disc player. RCA phono Line Out sockets.

    Specification
    Frequency response 2 Hz - 20 kHz (±0.3 dB)
    Signal to noise ratio More than 113 dB
    Dynamic range More than 100 dB
    Harmonic distortion Less than 0.0025% (1 kHz)
    Channel separation More than 105 dB (1 kHz)
    Outputs
    LINE OUT
    (phono jacks)    		 Output level 2V (at 50 kΩ)
    Load impedance over 10 kΩ

    Versions/Power requirements
    US model /  120V AC 60Hz
    Canadian model /  120V AC 60Hz
    AEP model /  220-230V AC 50/60Hz
    UK model /  240V AC 50/60Hz

    Power consumption:   12 W

  • Net weight (2.2 lb = 1 kg)
  • 4.5 kg / 9 lb 14.6 oz (9.912 lb)
  • Source of data
  • -- Original prospect or advert
  • Mentioned in
  • -- Original prospect or advert (1991-92 Sony Sound and Vision Hi-Fi catalogue)
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Service Manual CDP-S7)
  • Author
  • Model page created by Klemens Rhode. See "Data change" for further contributors.
