CF-570L
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1974
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 236940
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 110-240/ 8x 1,5 UM1 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Various materials
- from Radiomuseum.org
- Model: CF-570L - Sony Corporation; Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 465 x 300 x 114 mm / 18.3 x 11.8 x 4.5 inch
- Notes
-

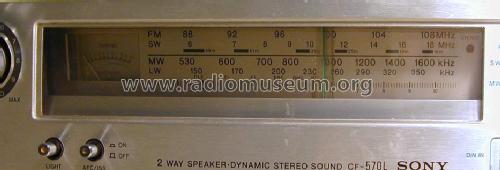

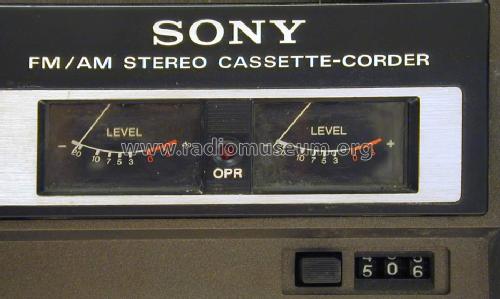

Sony CF-570L 4-band cassette radio recorder, 2-way speaker-dynamic stereo sound, cassette: normal, CrO2, reverse, stereo/mono, bass/treble; dial scale, AFC/ISS, on/off, DIN IN/tape / MIC with window display, 2 vu-meter, operation light, pause, 2 built-in speaker, headphone socket in front, voltage selection at back cabinet.
See also Sony model CF-570S, with MW, 2x SW and FM.
- Net weight (2.2 lb = 1 kg)
- 6.550 kg / 14 lb 6.8 oz (14.427 lb)
- Author
- Model page created by Eckhard Wegner. See "Data change" for further contributors.
