CFM-140L

• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1987 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 187076

• Picture

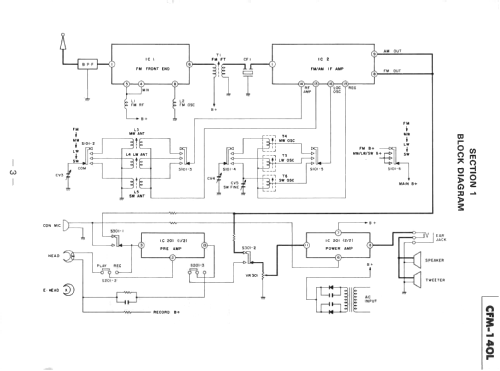

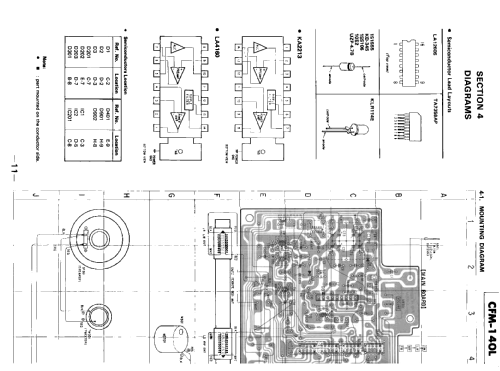

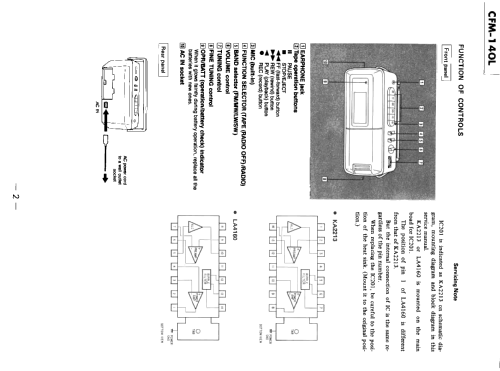

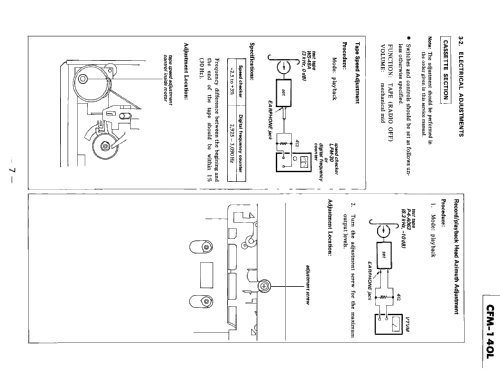

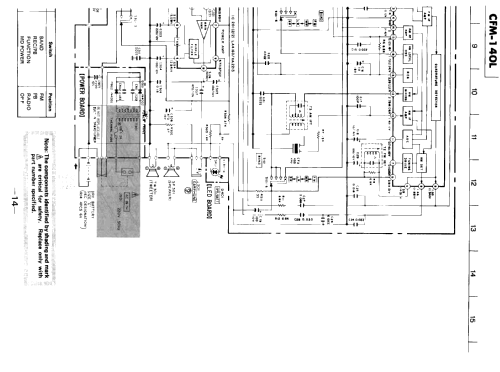

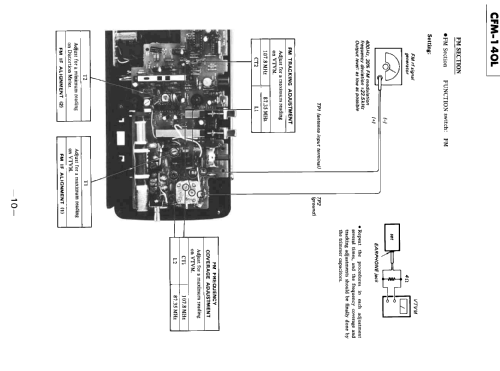

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / C: 4 x 1.5 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

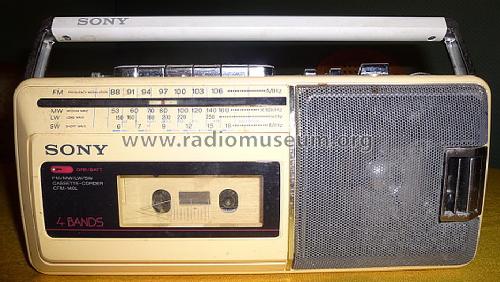

• Model: CFM-140L - Sony Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 308 x 134 x 90 mm / 12.1 x 5.3 x 3.5 inch

• Notes

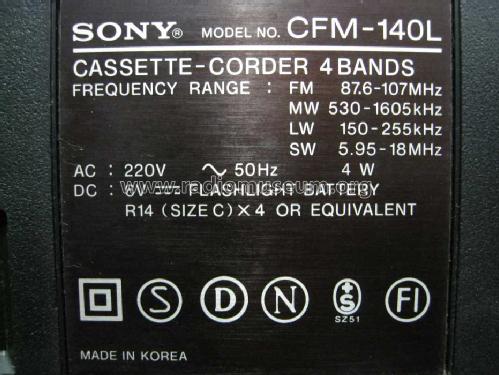

• Frequency ranges:
  LW = 150 - 255 kHz
  MW = 530 - 1605 kHz
  SW = 5.95 - 18 MHz
  FM = 87.6 - 107 MHz

  2 speakers: 7.6 cm full range, 2 cm tweeter
  Tape transport mechanism: MF-110

  Power requirements valid for AEP model.

  Made in Korea.

• Net weight (2.2 lb = 1 kg)
• 1.5 kg / 3 lb 4.9 oz (3.304 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Gil Silva. See "Data change" for further contributors.
