FM/AM Cassette-Corder CFM-800
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1979
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 121447

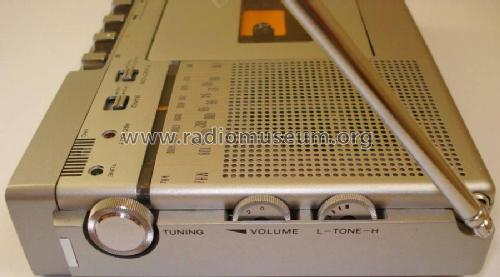

Foto: Hans-Jürgen Blech
Sony IFA Katalog 1979
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / Netzgerät; 6; 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.7 cm = 2.2 inch
- Power out
- 0.36 W (unknown quality)
- from Radiomuseum.org
- Model: FM/AM Cassette-Corder CFM-800 - Sony Corporation; Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 180 x 31 x 118 mm / 7.1 x 1.2 x 4.6 inch
- Notes
- Mono recorder, 90 to 10.000 Hz, optional working with ECM-200S microphone, car adapter type DCC-127A, foot switch FS-9; 220 V mains adaptor type AC-66.
- Net weight (2.2 lb = 1 kg)
- 0.8 kg / 1 lb 12.2 oz (1.762 lb)
- Price in first year of sale
- 550.00 DM
- Mentioned in
- Sony IFA Katalog 1979
- Author
- Model page created by a member from A. See "Data change" for further contributors.
