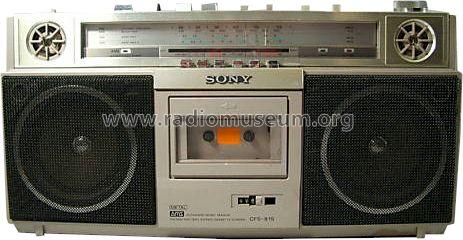

FM/MW/SW1/SW2 Stereo Cassette-Corder CFS-81S US & E

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1980
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 157598

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line plus power jack, mostly with battery or storage battery / 110-120; 220-240 / 12 / D: 8 x 1.5 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: FM/MW/SW1/SW2 Stereo Cassette-Corder CFS-81S [US & E] - Sony Corporation; Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 512 x 243 x 109 mm / 20.2 x 9.6 x 4.3 inch
  • Notes

  • Sony CFS-81S FM/MW/SW1/SW2 Stereo Cassette Recorder;
    "Ghettoblaster-Boombox"
    FM: 87.5 - 108 MHz,
    MW: 530 - 1605 KHz,
    SW1: 2.3 - 6 MHz,
    SW2: 6 - 18 MHz,
    SW fine tuning, balance-, bass & treble control, mono/stereo, tape counter, AMS-Automatic Music Search, metal/CrO2/norm bias, LED indicators & VU meters,
    US model 2 x 2 W, E model 2 x 3.5 W, mic. fader, batt./AC, cinch I/O, 2 x ext. mic in, phones jack, mic mix mono in, 2 x ext. speaker jacks, ext. antenna in clamp terminals, 13 W mains power consumption.

    Similar to the Sony CFS-81L FM/MW/LW/SW Stereo Cassette-Corder.

    Made in Japan

  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manual CFS-81S models US and E)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
