Compact Disc Player CDP-17F

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1987
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 315771

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 110-120; 220-240; 220; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player CDP-17F - Sony Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 215 x 53 x 228 mm / 8.5 x 2.1 x 9 inch
  • Notes

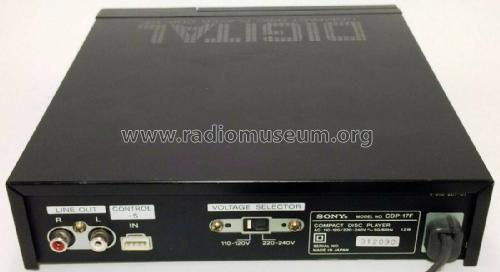

  • A mini sized stereo hi-fi compact disc player. RCA Line Out sockets, Control S system input socket, voltage selector (on the E model only), and a jack for headphones with volume control.

    Specification
    System  Compact disc digital audio system
    Laser (KSS-160C) Semiconductor laser (𝛌 = 780 nm)
    Laser output  Max. 0.4 mW
    Frequency response 5 Hz - 20 kHz (+0.5dB,-2.0dB)
    Signal to noise ratio More than 95 dB
    Dynamic range More than 90 dB
    Harmonic distortion Less than 0.05% (at 1 kHz)
    Channel separation More than 90 dB
    Wow and flutter Below measurable limit
    Line Out (Phono jack)
    Load impedance    		 Output level 2V (50 kΩ)
    More than 10 kΩ
    Headphones (Stereo minijack) 4.5 mW (32 Ω)

    Versions/Power Requirements
    AEP model:  /  220 V AC, 50/60 Hz
    UK model:  /  240 V AC, 50 Hz
    E model:  /  110-120/220-240 V AC 50/60 Hz adjustable
    G-AEP model:  /  220 V AC, 50/60 Hz

    Power consumption 12 W

  • Net weight (2.2 lb = 1 kg)
  • 2 kg / 4 lb 6.5 oz (4.405 lb)
  • Mentioned in
  • 1987 Spectacular Sony catalogue
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manual CDP-17F dated 1987.5)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
