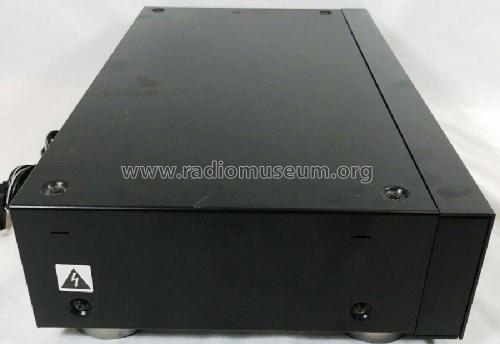

Compact Disc Player CDP-209ES

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1990
  • Category
  • Enrégistreur et/ou reproducteur son/video
  • Radiomuseum.org ID
  • 316229

 Technical Specifications

  • Number of Transistors
  • Semi-conducteurs présents
  • Semiconductors
  • Main principle
  • Amplification audio
  • Wave bands
  • - sans
  • Details
  • Lecteur CD et/ou graveur, MD, MOD (audio); Télécommande par HF ou fil
  • Power type and voltage
  • Alimentation Courant Alternatif (CA) / 120 Volt
  • Haut-parleur
  • - Pour casque ou amplificateur BF
  • Matière
  • Boitier métallique
  • from Radiomuseum.org
  • Model: Compact Disc Player CDP-209ES - Sony Corporation; Tokyo
  • Forme
  • Appareil d'étagère
  • Dimensions (WHD)
  • 430 x 110 x 280 mm / 16.9 x 4.3 x 11 inch
  • Notes

  • A stereo hi-fi compact disc player with remote control (RM-D490). Rigid monocoque chassis with aluminum front panel, Independently regulated power supplies, High Density Linear Converter system operating at 45 MHz, Sony 8x oversampling digital filter, Noise shaping, Direct Digital Sync and Servo Stabilizer Circuit. Peak level search, 24-track programming, Multi disc time program edit, Programmable fader, Shuffle play with delete, Six-way repeat and Index search. RCA phono sockets for fixed and variable Line Out, optical digital output connector and a jack for headphones with volume control.

    Specification
    Frequency response  2 Hz - 20 kHz ± 0.3 dB
    Signal to noise ratio More than 110 dB
    Dynamic range More than 97 dB
    Harmonic distortion  Less than 0.003 %
    Channel separation More than 100 dB
    Outputs
    Line Out (Fixed)
    (phono jacks)    		 Output level 2 V (at 50 kΩ)
    Load impedance over 10 kΩ
    Line Out (Variable)
    (phono jacks)    		 Output level max. 2 V (at 50 kΩ)
    Load impedance over 50 kΩ
    Digital Out (Optical)
    (optical output connector)    		 Wave length 660 nm
    Output level -18 dBm
    Phones
    (stereo phone jack)    		 Output level max. 15 mW
    Load impedance 32 Ω

    Versions/Power requirements
    US model: /  120 VAC 60 Hz

    Power consumption:     17 W

    Similar to the Sony CDP-790 Compact Disc Player.

  • Net weight (2.2 lb = 1 kg)
  • 4.5 kg / 9 lb 14.6 oz (9.912 lb)
  • Mentioned in
  • -- Original prospect or advert (1990 Sony ES High Fidelity Components catalogue)
  • Schémathèque (1)
  • - - Manufacturers Literature (Service Manual CDP-209ES/790 dated 1990.3)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
