Compact Disc Player CDP-302
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1985
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 214934

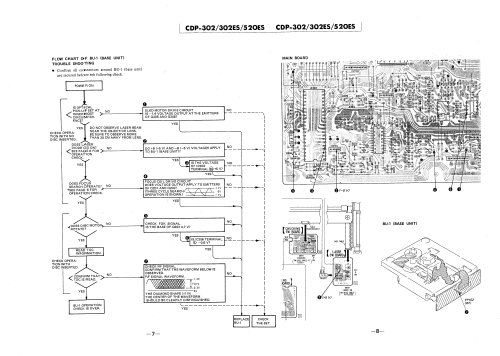

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- CD-Player, -Writer, MD, MOD (audio); Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 50-60Hz, 120 or 220 or 240 or 110; 120; 220; 240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Compact Disc Player CDP-302 - Sony Corporation; Tokyo
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 430 x 80 x 335 mm / 16.9 x 3.1 x 13.2 inch
- Notes
-
Sony Single Compact Disc Player Model CDP-302.
2-20000Hz, THD 0,003%, 96dB.
Power Consumption 15 watts.
Remote Control Unit: Sony RM-D302.
Sony BU-1 laser transport, CX20152 16-bit linear DAC.Model Identification: Sony CDP-302:
US & Canadian Model (AC 120V, 60Hz, 15 Watts)
Sony CDP-302ES:
AEP-, G-AEP-Model (AC 220V, 50/60Hz, 15 watts) & UK-Model (AC 240V, 50/60Hz, 15 watts)
E-Model (AC 110, 120, 220, 240V, 50/60Hz, 15 watts).
- Net weight (2.2 lb = 1 kg)
- 6.7 kg / 14 lb 12.1 oz (14.758 lb)
- Source of data
- - - Manufacturers Literature
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
