Compact Disc Player CDP-303ES

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1986
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 315670

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 120; 220; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Compact Disc Player CDP-303ES - Sony Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 85 x 336 mm / 16.9 x 3.3 x 13.2 inch
  • Notes

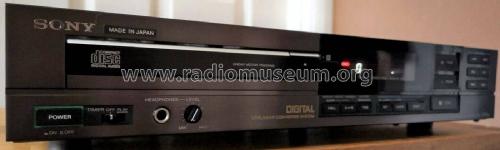

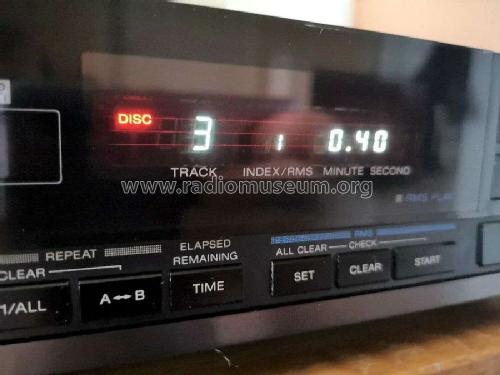

  • A stereo hi-fi compact disc player with remote control (RM-D302). RCA line out sockets, subcode out socket. Jack for headphones with volume control.

    Specification
    System Compact disc digital audio system
    Error correction Sony Super Strategy Cross Interleave Reed Solomon Code
    D-A conversion 16-bit linear
    Frequency response 2 - 20,000 Hz ±0.5 dB
    Harmonic distortion Less than 0.003 % (1 kHz)
    Dynamic range More than 96 dB
    Channel separation More than 95 dB

    Versions/Power requirements
    AEP model  /  220 V AC, 50/60 Hz
    UK model  /  240 V AC 50 Hz
    E model  / 110, 120, 220 or 240 V AC 50/60 Hz adjustable.

    Power consumption  15W

  • Net weight (2.2 lb = 1 kg)
  • 6.8 kg / 14 lb 15.6 oz (14.978 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manual CDP-303ES/302II/520ESII dated 1986)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
