Compact Disc Player CDP-315

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1994
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 316669

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 220-230; 240; 110-120; 220-240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player CDP-315 - Sony Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 100 x 295 mm / 16.9 x 3.9 x 11.6 inch
  • Notes

  • A stereo hi-fi compact disc player with remote control (RM-D320). High Density Linear Converter, Custom Edit Function. With continuous play, Fading In/Out, Shuffle play, Program play, Music Scan, Repeat play, Time Edit, Time Fade and Peak Search. RCA phono Line Out sockets, jack for headphones with volume control.

    Specification
    Laser (KSS-240A) Semiconductor laser (λ = 780 nm)
    Wavelength 780 - 790 nm
    Frequency response 2 Hz - 20 kHz ±0.5 dB
    Signal to noise ratio More than 100 dB
    Dynamic range More than 98 dB
    Harmonic distortion Less than 0.0045%
    Channel separation More than 95 dB
    Outputs
    LINE OUT
    (Phono jacks)    		 Output level 2V (at 50 kΩ)
    Load impedance over 10 kΩ
    DIGITAL OUT (OPTICAL)
    (Optical output connector)    		 Wavelength 660 nm
    Output level -18 dBm
    PHONES
    (Stereo phone jack)    		 Output level max 10 mW
    Load impedance 32 Ω

    Versions/Power requirements
    US model /  120V AC 60Hz
    AEP model /  220-230V AC 50/60Hz
    Australian model /  240V AC 50/60Hz
    E model /  110-120V, 220-240V AC 50/60Hz adjustable

    Power consumption:   10 W

    Similar to the Sony CDP-215 Compact Disc Player which has no remote control nor digital optical output.

  • Net weight (2.2 lb = 1 kg)
  • 3.2 kg / 7 lb 0.8 oz (7.048 lb)
  • Mentioned in
  • -- Original prospect or advert (Sony General catalogue '94)
  • Literature/Schematics (1)

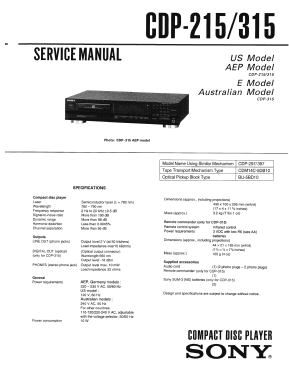

  • - - Manufacturers Literature (Service manual CDP-215/315 dated 1994.2)
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Operating Instructions CDP-215 CDP-315 dated 1994)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
