• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1991 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 315997

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 110; 120; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

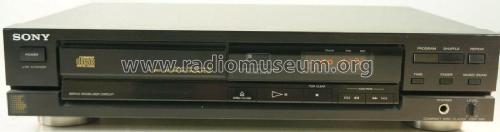

• Model: Compact Disc Player CDP-390 - Sony Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 430 x 100 x 280 mm / 16.9 x 3.9 x 11 inch

• Notes

• A stereo hi-fi compact disc player with remote control (RM-D90). Dual D/A converter system, 4 times oversampling digital filter. Program, Shuffle and Repeat modes, Music Scan, Fader. RCA phono sockets for Line Out, jack for headphones with volume control.

  Specification
  Frequency response	2 Hz - 20 kHz ± 1.0 dB,-1.2 dB
  Signal to noise ratio	More than 93 dB
  Dynamic range	More than 90 dB
  Harmonic distortion	Less than 0.05 %
  Channel separation	More than 90 dB
  Line Out (phono jacks)	Output level 2 V (at 50 kΩ) Load impedance over 10 kΩ
  Headphones (stereo phone jack)	Output level max. 10 mW Load impedance 32 Ω

  Versions/Power requirements
  US model  /  120 V AC, 60 Hz
  AEP model  /  220 V AC, 50/60 Hz
  Australian model  /  110, 120, 220 or 240 V AC 50/60 Hz adjustable
  E model  /  110, 120, 220 or 240 V AC 50/60 Hz adjustable

  Power consumption 8 W

  Similar to the Sony CDP-190 Compact Disc Player which has no remote control.

  Production also in France

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Literature/Schematics (1)
• - - Manufacturers Literature (Service Mamual CDP-190/390 dated 1991.1)

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.
