Compact Disc Player CDP-501ES
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1984
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 161165
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- CD-Player, -Writer, MD, MOD (audio); Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 110; 120; 220; 240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Compact Disc Player CDP-501ES - Sony Corporation; Tokyo
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 430 x 105 x 325 mm / 16.9 x 4.1 x 12.8 inch
- Notes
-

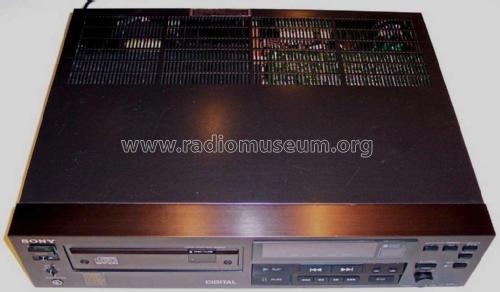

An early stereo hi-fi compact disc player housed in a black metal case with remote control (RM-111). RCA phono sockets for Fixed and Variable Line Output, Accessory connector (for connecting future optional equipment) and a Beep On/Off switch (a buzzer which sounds when the remote control is operated). With feather touch controls, AMS (Automatic Music Sensor) and Repeat functions and a digital display showing track number and Elapsed or Remaining time, selected by the Elapsed/Remaining button. Jack for headphones with volume control.
Specification System Compact disc digital audio system Disc Compact Disc Track pitch 1.6 µm Sampling frequency 44.1 kHz Quantization 16 bit linear quantizing/channel Modulation system EFM Transfer rate 2.03 Mbit/sec. (before modulation) Laser (KSS-100A) Semiconductor laser Spindle speed 200 r.p.m. to 500 r.p.m. (CLV) Scan velocity 1.2 - 1.4 m/sec. Error correction Sony Super Strategy Cross Interleave Reed Solomon Code Number of channels 2 D-A conversion 16-bit linear Frequency response 5 - 20,000 Hz ±0.5 dB Harmonic distortion Less than 0.003 % (1 kHz) Dynamic range More than 95 dB Channel separation More than 90 dB Wow and flutter Below measurable limit Outputs Line out Fixed Output level 2 V rms (at MSB)
Load impedance over 10 kΩLine out Variable Max output level 2 V rms (at MSB)
Load impedance over 50 kΩHeadphones 28 mW at 32 Ω Versions/Power requirements
AEP model / 220V AC 50/60Hz
UK model / 240V AC 50/60Hz
E model / 110, 120, 220 or 240V AC 50/60Hz adjustablePower consumption: 30 W
Similar to the Sony CDP-501, Sony CDP-610ES and CDP-400 Compact Disc Players.
- Net weight (2.2 lb = 1 kg)
- 8.6 kg / 18 lb 15.1 oz (18.943 lb)
- Source of data
- -- Original prospect or advert
- Mentioned in
- Sony Katalog HiFi 84 - Seite 4
- Literature/Schematics (2)
- - - Manufacturers Literature (Service manual CDP-400/501/501ES/610ES dated 1983)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
