Compact Disc Player CDP-507ESD

Sony Corporation; Tokyo

  • Anno
  • 1987 ?
  • Categoria
  • Registratore audio/video e/o riproduttore
  • Radiomuseum.org ID
  • 315709

Clicca sulla miniatura dello schema per richiederlo come documento gratuito.

 Specifiche tecniche

  • Numero di transistor
  • A semiconduttori.
  • Semiconduttori
  • Principio generale
  • Amplificatore audio
  • Gamme d'onda
  • - senza
  • Particolarità
  • CD-Player, -Writer, MD, MOD (audio); Telecomando (con o senza filo)
  • Tensioni di funzionamento
  • Alimentazione a corrente alternata (CA) / 110; 120; 220-240 Volt
  • Altoparlante
  • - Per cuffie o amplificatori esterni
  • Materiali
  • Mobile di metallo
  • Radiomuseum.org
  • Modello: Compact Disc Player CDP-507ESD - Sony Corporation; Tokyo
  • Forma
  • Apparecchio per ripiani a scaffale (come i componibili HiFi).
  • Dimensioni (LxAxP)
  • 430 x 110 x 345 mm / 16.9 x 4.3 x 13.6 inch
  • Annotazioni
  • A stereo hi-fi compact disc player with remote control (RM-D450). Staggered 4 D/A Converter System (2 x Philips TDA1541A-R1 DACs), 8 Times Oversampling 18 bit digital filter. RCA phono sockets for Fixed and Variable Line Output and Digital Output, Optical digital output connector and a jack for headphones with volume control.

    Specification
    System Compact disc digital audio system
    Laser (KSS-151A) Semiconductor laser (λ = 780 nm)
    Emission duration: Continuous
    Frequency response 2 - 20,000Hz ±0.5 dB
    Signal-to-noise ratio More than 106 dB
    Dynamic range More than 96 dB
    Harmonic distortion Less than 0.0025%
    Channel separation More than 100 dB
    Wow and flutter Below measurable limit
    Outputs
    Line Out (Fixed)
    (phono jacks)
    Output Level 2 V (at 50kΩ)
    Load Impedance over 10kΩ
    Line Out (Variable)
    (phono jacks)
    Output Level max. 2 V (at 50kΩ)
    Load Impedance over 50kΩ
    Digital Out (Coaxial)
    (phono jack)
    Max. Output Level 0.5V p-p (75Ω)
    Load Impedance 75Ω
    Digital Out (Optical)
    (optical output connector)
    Wave length 660 nm
    Output level -18 dBm
    Headphones
    (stereo phone jack)
    Output level max. 28 mW
    Load impedance 32 Ω

    Versions/Power requirements
    US model /  120V AC 60Hz
    Canadian model /  120V AC 60Hz
    E model /  110, 120V, 220-240V AC 50/60Hz adjustable

    Power Consumption:   22 W

    See also the technically identical Sony CDP-227ESD compact disc player (AEP & UK model).

  • Peso netto
  • 6.3 kg / 13 lb 14 oz (13.877 lb)
  • Bibliografia
  • -- Original-techn. papers.
  • Letteratura / Schemi (1)

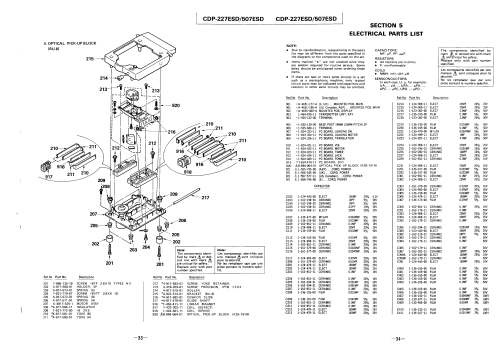

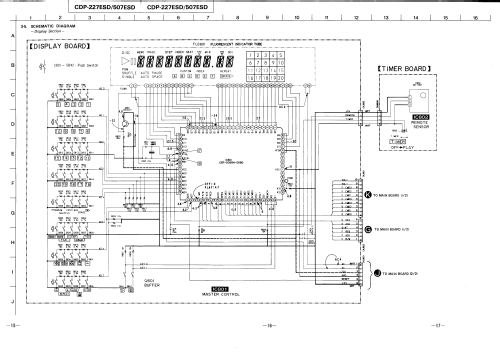

  • - - Manufacturers Literature (Service manual CDP-227ESD/507ESD dated 1988.4)
