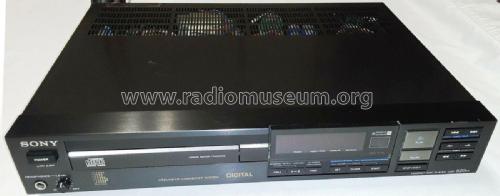

Compact Disc Player CDP-520ES

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1985 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 315691

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Compact Disc Player CDP-520ES - Sony Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 80 x 335 mm / 16.9 x 3.1 x 13.2 inch
  • Notes

  • A stereo hi-fi compact disc player with remote control (RM-D502). RCA line out sockets, subcode out socket, sockets for system remote. Jack for headphones with volume control.

    Specification
    System Compact disc digital audio system
    Error correction Sony Super Strategy Cross Interleave Reed Solomon Code
    Number of Channels 2
    D-A conversion 16-bit linear
    Frequency response 2 - 20,000 Hz ±0.5 dB
    Harmonic distortion Less than 0.003 % (1 kHz)
    Dynamic range More than 96 dB
    Channel separation More than 95 dB
    Outputs
      Line outputs Output level 2V rms (at MSB) Load impedance > 10kΩ
      Headphones 28 mW at 32 Ω
    Other jacks Remote control connectors (4 pin)

    Versions/Power Requirements
    US model / 120V AC 60Hz

  • Net weight (2.2 lb = 1 kg)
  • 6.7 kg / 14 lb 12.1 oz (14.758 lb)
  • Mentioned in
  • Reviewed in Stereo Review magazine (USA) July 1985
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manual CDP-302/302ES/520ES)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
