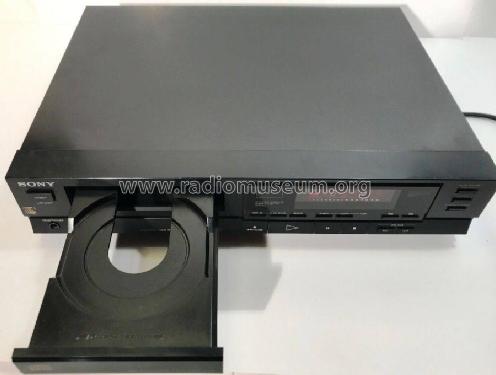

Compact Disc Player CDP-550

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1987
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 315831

 Technical Specifications

  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 220; 240 Volt
  • Loudspeaker
  • - Is a Headphone or Earphone
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player CDP-550 - Sony Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 100 x 340 mm / 16.9 x 3.9 x 13.4 inch
  • Notes

  • A stereo hi-fi compact disc player with remote control (RM-D250). 4 times oversampling dual D/A converter system. RCA Line Out sockets, jack for headphones with volume control.

    Specification
    System Compact disc digital audio system
    Laser (KSS-150A) Semiconductor laser (λ = 780 nm)
    Emission duration Continuous
    Laser output Max. 0.4 mW
    Frequency response 2Hz - 20kHz (±0.5 dB)
    Signal to noise ratio More than 100 dB
    Dynamic range More than 88 dB
    Harmonic distortion Less than 0.05% (1 kHz)
    Channel separation More than 95 dB (1 kHz)
    Wow and flutter Below measurable limit
    Output
    Line Out
    (phono jacks)    		 Output level 2 V (at 50 kΩ)
    Load impedance over 10 kΩ

    Versions/Power Requirements
    AEP Model  /  220V AC 50Hz
    UK Model  /  240V AC 50Hz
    US Model  /  120V AC 60Hz
    Canadian Model  /  120V AC 60Hz

    Power consumption: 10W

    The Sony CDP-350 Compact Disc Player is similar but without remote control.

  • Net weight (2.2 lb = 1 kg)
  • 4.5 kg / 9 lb 14.6 oz (9.912 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manual CDP-350/550 AEP UK models dated 1987.12)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
