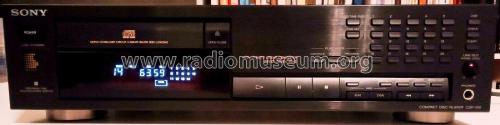

Compact Disc Player CDP-591

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1991
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 316323

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 220-230; 240; 110-120; 220-240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player CDP-591 - Sony Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 110 x 280 mm / 16.9 x 4.3 x 11 inch
  • Notes

  • A stereo hi-fi compact disc player with remote control (RM-D591). High Density Linear Converter, Direct Digital Sync. Single Play, Shuffle Play, Repeat Play, Program Play, Multi-Disc Program, Music Scan, Time Edit/Just Edit, Fading In/Out. RCA phono sockets for fixed and variable Line Out, jack for headphones with volume control.

    Specification
    Frequency response 2 Hz - 20 kHz ± 0.5 dB
    Signal to noise ratio More than 100 dB
    Dynamic range More than 98 dB
    Harmonic distortion Less than 0.003%
    Channel separation More than 97 dB
    Outputs
    Line Out (Fixed)
    (phono jacks)    		 Output level 2 V (at 50 kΩ)
    Load impedance over 10 kΩ
    Line Out (Variable)
    (phono jacks)    		 Output level max. 2 V (at 50 kΩ)
    Load impedance over 50 kΩ
    Headphones
    (stereo phone jack)    		 Output level max. 10 mW
    Load impedance 32 Ω

    Versions/Power requirements
    US Model 120V AC 60Hz
    Canadian Model 120V AC 60Hz
    AEP Model 220-230 V AC 50/60 Hz
    Australian Model 240 V AC 50/60 Hz
    UK Model 240 V AC 50/60 Hz
    E Model 110-120V, 220-240V AC 50/60 Hz adjustable

    Power consumption   12W

    Similar to the Sony CDP-M51 Compact Disc Player which is housed in a midi sized case.

  • Net weight (2.2 lb = 1 kg)
  • 3.7 kg / 8 lb 2.4 oz (8.15 lb)
  • Mentioned in
  • -- Original prospect or advert (1991-92 Sony Sound and Vision Hi-Fi catalogue)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manual CDP-591/M51)
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Operating Instructions CDP-591 dated 1991)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
