Compact Disc Player CDP-670
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1989
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 209610

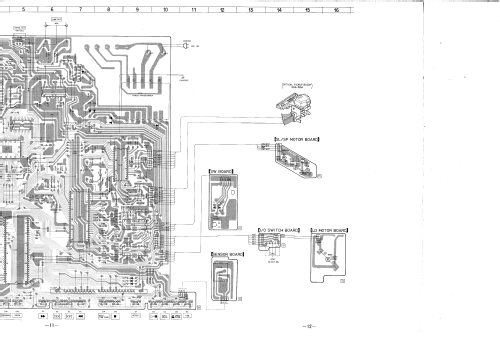

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- CD-Player, -Writer, MD, MOD (audio)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Compact Disc Player CDP-670 - Sony Corporation; Tokyo
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 430 x 100 x 275 mm / 16.9 x 3.9 x 10.8 inch
- Notes
- Frequenzgang 2Hz - 20kHz, Dynamikumfang über 93 dB, Klirrgrad unter 0,008%, Kanaltrennung über 95 dB (1kHz).
- Net weight (2.2 lb = 1 kg)
- 3.5 kg / 7 lb 11.3 oz (7.709 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Werner Wussow. See "Data change" for further contributors.
