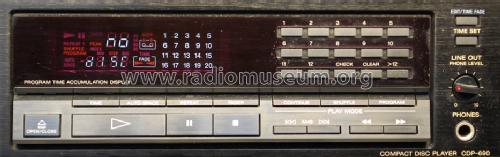

Compact Disc Player CDP-690

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1991
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 219073

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 220; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player CDP-690 - Sony Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 100 x 280 mm / 16.9 x 3.9 x 11 inch
  • Notes

  • A stereo hi-fi compact disc player with remote control (RM-D690). RCA phono fixed and variable Line Out sockets, optical digital output connector.

    Specification
    Frequency response 2 Hz - 20 kHz ±0.5 dB
    Signal to noise ratio More than 105 dB
    Dynamic range More than 95 dB
    Harmonic distortion Less than 0.005%
    Channel separation More than 95 dB
    Outputs
    Line Out (Fixed)
    (phono jacks)    		 Output level 2 V (at 50 kΩ)
    Load impedance over 10 kΩ
    Line Out (Variable)
    (phono jacks)    		 Output level max. 2 V (at 50 kΩ)
    Load impedance over 10 kΩ
    Digital Out (Optical)
    (optical output connector)    		 Wave length 660 nm
    Output level -18 dBm
    Phones
    (stereo phone jack)    		 Output level max. 15 mW
    Load impedance 32 Ω

    Versions/Power requirements
    AEP Model 220 V AC 50/60 Hz
    UK Model 240 V AC 50/60 Hz

    Anschlüsse

    • 3 Ausgänge: Fixed Stereo / Variabel Stereo / Optisch Digital
      • 2x Line Out (fix/variabel)
      • Digital Out (optisch)
      • Kopfhörer (6,3mm Klinke): regelbar

    Technische Daten

    • Wandler:
      • alt: 2x AD1860N – CXD2551
      • neu: 1x CXD2552Q – CXD2554P
    • Laser: KSS-150A
    • Frequenzgang: 2 - 20.000 Hz (±0,5 dB)
    • Dynamikbereich: 95 dB
    • Signalrauschabstand: 105 dB
    • Klirrfaktor: 0,005 %
    • Shuffle
    • Titel-Programmierung

    Besondere Ausstattungen

    • 12er-Zahlenfeld
    • Schöner Dynamisch und Frei Klingender CDP

    Made in France

  • Net weight (2.2 lb = 1 kg)
  • 3.7 kg / 8 lb 2.4 oz (8.15 lb)
  • Price in first year of sale
  • 450.00 DM
  • Mentioned in
  • -- Original prospect or advert (Sony Hi-Fi Audio '91 catalogue)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manual CDP-690 dated 1990.6)
